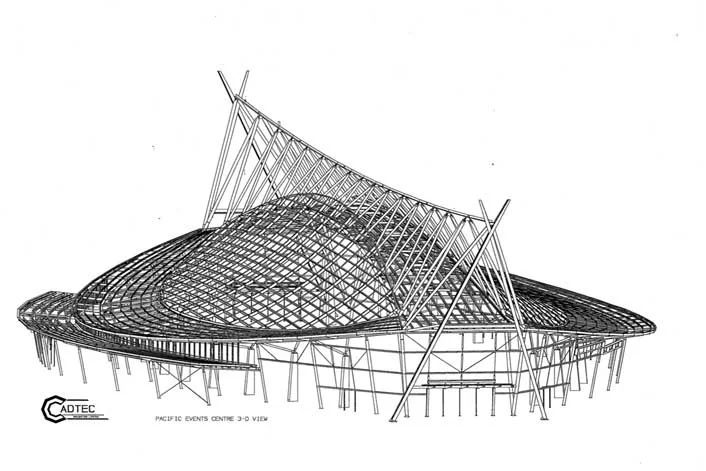

Shop Drawings

Shop drawings are done in-house by associated detailing company Cadtec Draughting Ltd, utilizing the 3D modelling software called Tekla.

Established in 1995, Cadtec Draughting started detailing with StruCAD and has gained a reputation for their professionalism and meticulous attention to detail. As a consequence, they have received many international awards for their work.

As well as providing the workshop drawings for fabrication, the software produces CAD data for Grayson's fabrication machinery, and documentation for Quality Assurance.
